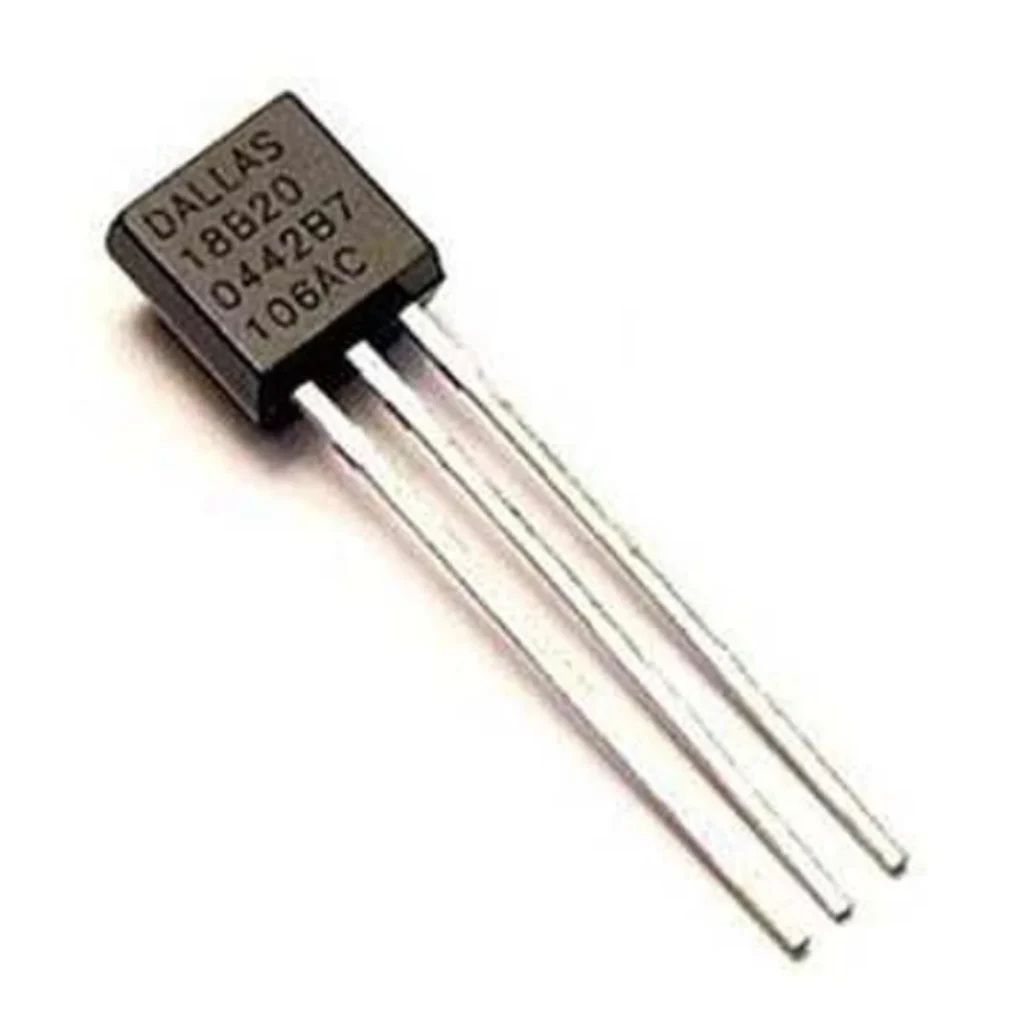

Spark Electronics DS18B20 TO-92 TEMPERATURE SENSOR

Unique 1-Wire® interface requires only one port pin for communication Each device has a unique 64-bit serial code stored in an onboard ROM Multidrop capability simplifies distributed temperature sensing applications Requires no external components Can be powered from data line. Power supply range is 3.0V to 5.5V Measures temperatures from –55°C to +125°C (–67°F to +257°F) ±0.5°C accuracy from –10°C to +85°C Thermometer resolution is user-selectable from 9 to 12 bits Converts temperature to 12-bit digital word in 750ms (max.) User-definable nonvolatile (NV) alarm settings Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition) Available in 8-pin SO (150mil), 8-pin μSOP, and 3-pin TO-92 packages Software compatible with the DS1822 Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system
